Quick PocketWizard Overview
PocketWizard creates radios which allow for the wireless control and synchronization of cameras, flash lighting and light meters--perfect for sports, nature, event photography and much more. Their radio's connect to a wide variety of professional cameras allowing a photographer to trigger captures from several devices across long distances.
Controlling Camera Trigger Settings Over Bluetooth

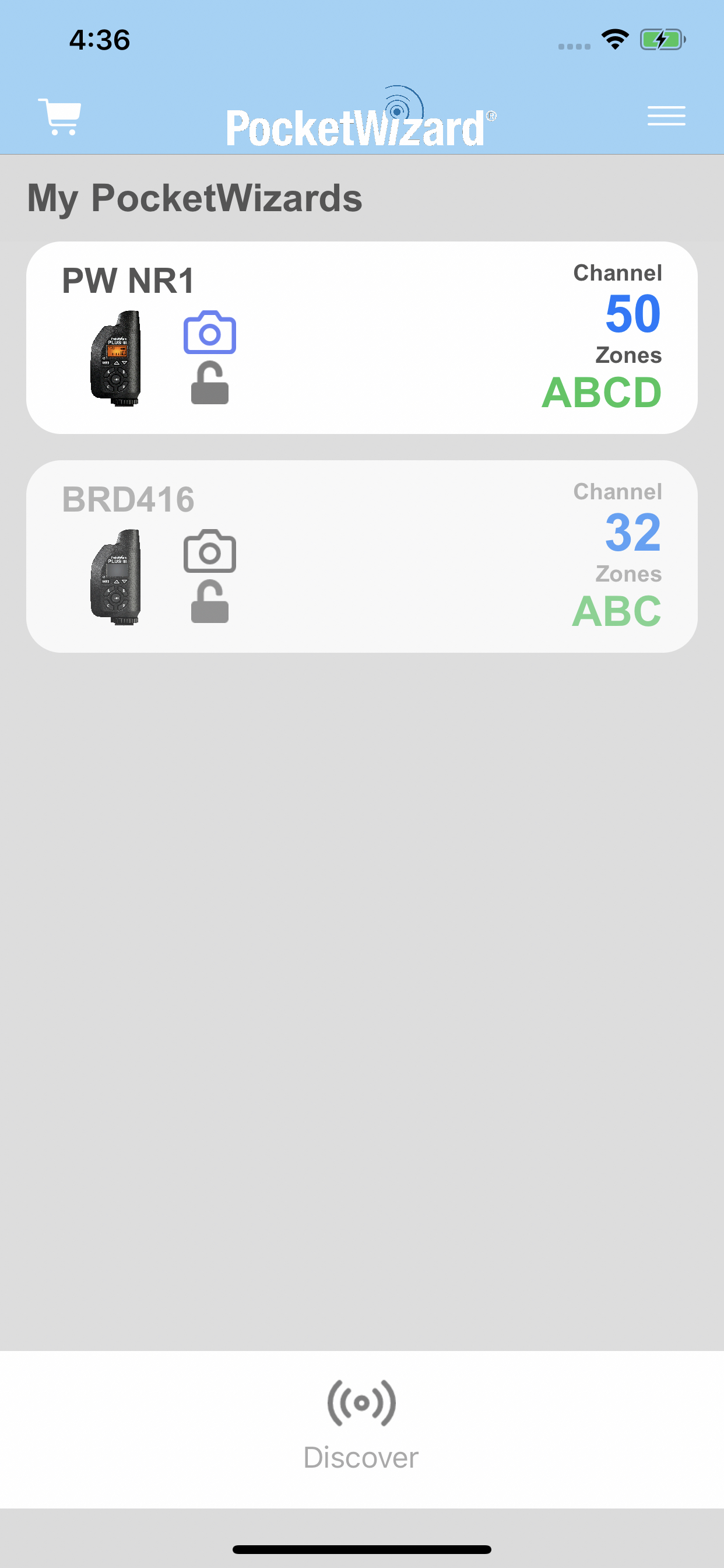

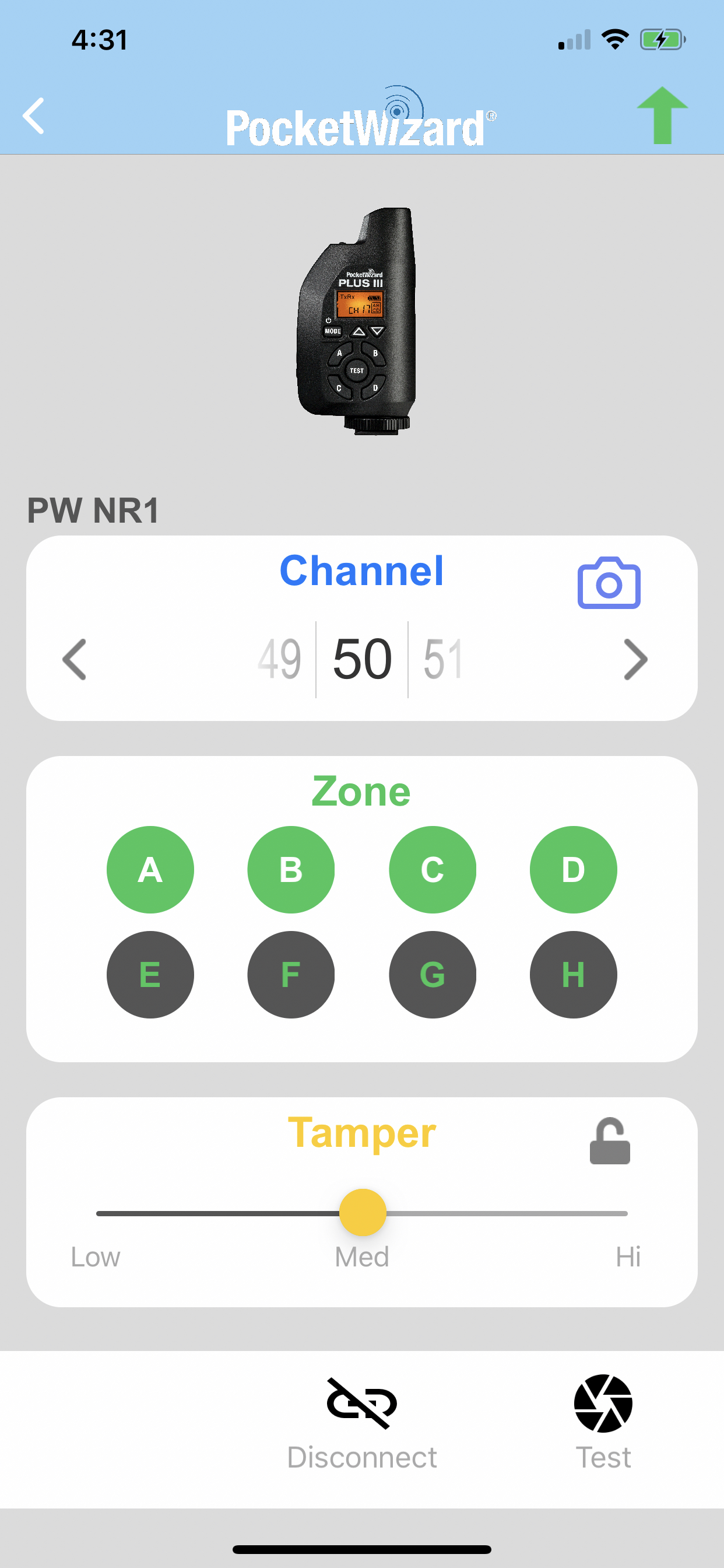

Working at PocketWizard I created a full-stack iOS application for controlling the mode (flash vs trigger), radio frequency, and tamper settings on their latest radio trigger prototype over Bluetooth Low Energy.
- I learned Swift and became a master with XCode's Interface Builder and UIKit Core (although I look forward to the mass adoption of SwiftUI).
- Of course I also had to delve deep into the CoreBLE library and learn quite a bit about the relationship between mobile applications and microcontroller peripherals.
- I got to express my artistic side and develop a couple Adobe XD mock-ups and edit images in GIMP
This doesn't sound fullstack?

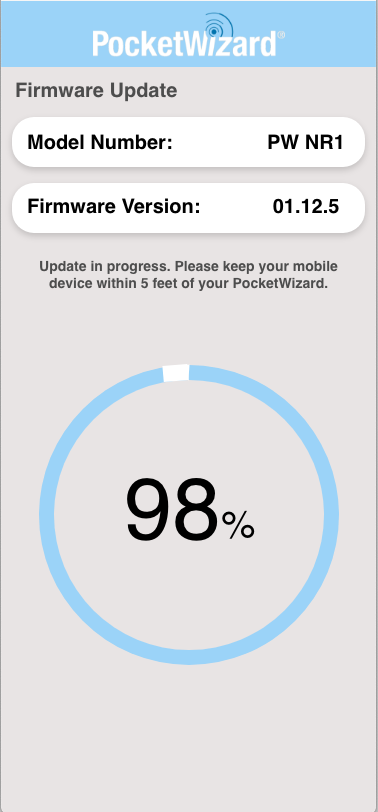

The neatest feature implemented though was the over-the-air (OTA) firmware updates:
- Firmware updates improving reliability, range and performance of the remote triggers could be uploaded into an AWS S3 bucket by our embedded systems engineer.
- The mobile application would then make occasional queries to determine if there was a new firmware update. If so, the user would be alerted and, with agreement, the image was pulled from the AWS bucket.
- The iOS application would send commands to the trigger microcontroller to switch into an app-loader mode.
- Keeping the old firmware image in the upper half of the microcontroller's memory to avoid a brick, the iOS application would deliver the new image packet-by-packet in a closed-loop fashion with a responsive UI indicating the update's progress.
- After the update was completed, a check would be run to ensure a clean image was received and then the old image was deleted.
Disclaimer: Unfortunately, during this time COVID-19 hit reducing company budget for new projects and I also found a new job thus this product never made it to production.
